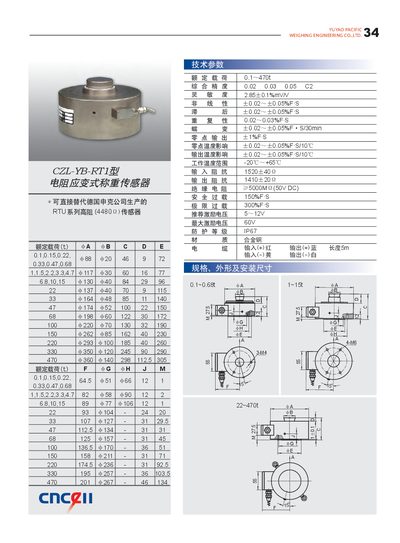

This document describes the specifications, dimensions, and installation dimensions of the CZL-YB-RT1 resistive strain gauge weighing sensor, as well as its rated load, comprehensive accuracy, sensitivity, and other characteristics.
This manual provides the essential information for installing, configuring, and operating the YUYAO PACIFIC CZL‑YB‑RT1 resistance strain weight sensor. It includes the sensor's rated load range, accuracy, environmental limits, and electrical requirements.
Technical data such as the sensor's IP67 protection rating, excitation voltage range, and temperature operating limits are listed, along with guidelines for proper mounting and wiring to ensure reliable performance in weighing applications. This manual is written in Chinese.
| Rated load | 0.1–470 t |
|---|---|
| Accuracy | 0.02%–0.05% C2 |
| Operating temperature | -20 °C to +65 °C |
| IP protection rating | IP67 |
The sensor is rated for loads from 0.1 t up to 470 t.
It can operate between –20 °C and +65 °C.
The sensor is protected with an IP67 rating.
