The technical parameters of the CZL-YB-11 type resistance strain type weighing sensor, including rated load, comprehensive accuracy, sensitivity, non-linearity, lag, repeatability, creep, zero point, output, zero point temperature influence, output temperature influence, working temperature range, input resistance, output resistance, insulation resistance, safety overload, limit overload, recommended excitation voltage, maximum excitation voltage, protection class, material, cable, etc.

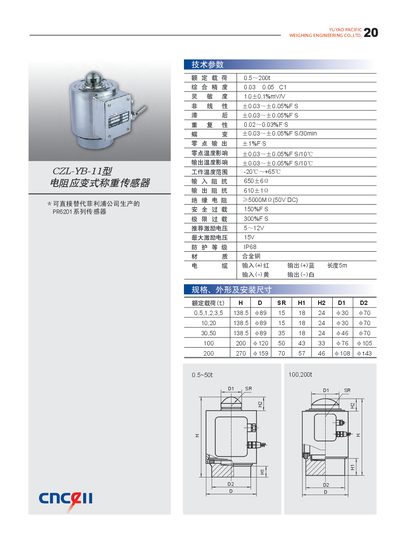

This document provides the technical parameters for the Yuyao CZL‑YB‑11 resistance strain weight sensor, including its rated load capacity, measurement accuracy, sensitivity, hysteresis, repeatability, and temperature effects. It also lists the electrical requirements such as excitation voltage and protection rating.
Key environmental specifications are given, such as the operating temperature range of –20 °C to +65 °C and an IP68 protection class, making the sensor suitable for harsh industrial weighing applications. This manual is written in Chinese.
| Rated Load | 0.5–200 t |
|---|---|
| Full Scale Accuracy | 0.05 % FS |
| Sensitivity | 10 µV/V (≈0.1 % FS) |
| Hysteresis | 0.03–0.05 % FS |
| Repeatability | 0.02–0.03 % FS |
| Temperature Coefficient | 0.03–0.05 % FS/10 °C |
| Operating Temperature Range | -20 °C to +65 °C |
| Excitation Voltage | 5–12 V (max 15 V) |
| Maximum Excitation Voltage | 15 V |
| Protection Rating | IP68 |
The sensor can measure loads from 0.5 t up to 200 t.
It is rated IP68, providing dust‑tight and water‑resistant protection.
The sensor operates between –20 °C and +65 °C.
Use an excitation voltage of 5 V to 12 V, with a maximum of 15 V.
