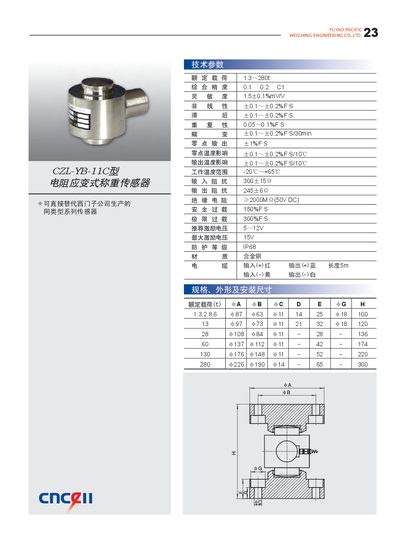

This document introduces the specifications, dimensions, installation dimensions, and technical parameters of CNCELLS resistance strain gauge weighing sensors.
The CZL-YB-11C is a resistance strain weight sensor designed for high‑precision weighing applications. It provides a wide rated load range and stable performance under varying environmental conditions.
Key specifications include a rated load of 1.3–280 t, operating temperature from –20 °C to +65 °C, IP68 protection, and an excitation voltage range of 5–12 V (maximum 15 V). Accuracy, hysteresis, repeatability and temperature effects are detailed in the data sheet. This manual is written in Chinese.
| Rated load | 1.3–280 t |
|---|---|
| Operating temperature range | -20 °C to +65 °C |
| Excitation voltage | 5–12 V |
| Maximum excitation voltage | 15 V |
The sensor can measure loads from 1.3 t up to 280 t.
It operates between –20 °C and +65 °C.
Use an excitation voltage between 5 V and 12 V, with a maximum of 15 V.
