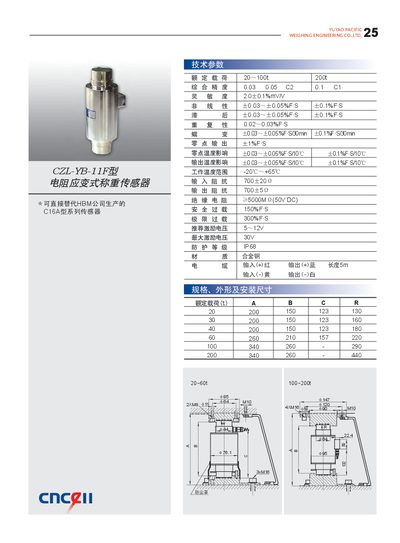

This document introduces the features and characteristics of CNCELLS CZL-YB-11F type resistance strain type weighing sensor, including rated load, comprehensive accuracy, sensitivity, non-linearity, delay, repeatability, creep, zero point, output, zero point temperature influence, output temperature influence, working temperature range, input impedance, output impedance, insulation resistance, safe overload, extreme overload, recommended excitation voltage, maximum excitation voltage, protection level, material, cable, etc.
This document provides the technical parameters and performance characteristics of the YUYAO PACIFIC CZL‑YB‑11F resistance strain weight sensor. It lists the rated load, accuracy, sensitivity, non‑linearity, hysteresis, creep, temperature effects and environmental protection rating.
Installation and wiring information is also included, together with recommended excitation voltage and maximum voltage limits. The sensor is rated IP68 for protection against dust and water and is suitable for use in harsh industrial environments. This manual is written in Japanese.
| Rated load | 20‑100 t, up to 200 t |
|---|---|
| Accuracy | 0.03 % FS (C2), 0.05 % FS (C1) |
| Non‑linearity | 0.03‑0.059 % FS |
| Hysteresis | 0.03‑0.059 % FS |
| Creep | 0.02‑0.03 % FS |
| Excitation voltage | 5‑12 V (recommended), max 30 V |
| Protection rating | IP68 |
The sensor is rated for loads from 20 t to 100 t, with an upper limit of 200 t.
A recommended excitation voltage of 5 V to 12 V should be applied, with a maximum allowable voltage of 30 V.
The sensor is protected to an IP68 rating, making it dust‑tight and water‑resistant.
