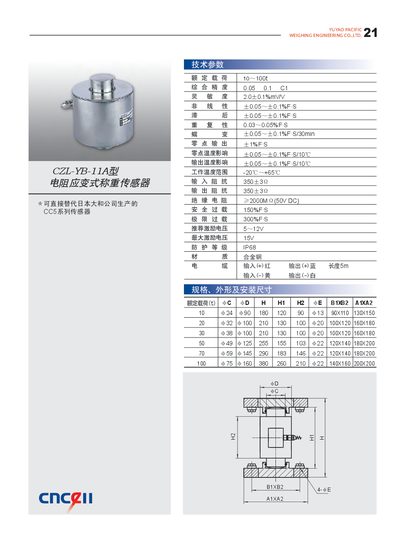

CZL-YB-11A type resistance strain type load cell, can be directly replaced by Yamato CC5 series sensors, rated load 10-100t, technical parameters see the table below.
The CZL-YB-11A resistance strain weight sensor from Yuyad Pacific is designed for weighing applications with a rated load from 10 to 100 t. Its technical parameters include high accuracy, low non‑linearity, and robust temperature stability.
The sensor operates with a recommended excitation voltage of 5–12 V (maximum 15 V) and features an IP68 protection rating. Electrical input and output impedances are both 350 Ω, and the device is constructed from alloy steel for durability. This manual is written in Chinese.
| Rated Load | 10–100 t |
|---|---|
| Overall Accuracy | 0.05 % FS |
| Non‑linearity | 0.05–0.1 % FS |
| Working Temperature Range | -20 °C to +65 °C |
| Recommended Excitation Voltage | 5–12 V |
| Maximum Excitation Voltage | 15 V |
| Protection Rating | IP68 |
The sensor is rated for loads between 10 t and 100 t.
A recommended excitation voltage of 5 V to 12 V should be applied, with a maximum of 15 V.
The sensor has an IP68 protection rating.
It operates from –20 °C up to +65 °C.
