CZL-YB-4/4A/4AW type resistance strain gauge load cells are mainly used for static weighing. This series of load cells have the characteristics of high accuracy, high sensitivity, wide measurement range, high reliability, good repeatability, etc.

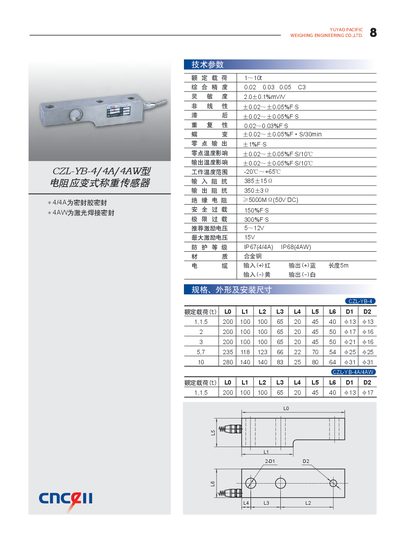

This document describes the technical parameters and installation requirements for the CZL-YB-4/4A/4AW resistance strain weight sensor. It includes rated load, accuracy, temperature coefficients, material, and environmental protection details.
Key specifications such as excitation voltage (5‑12 V, max 15 V), IP rating (IP67 for the 4A version, IP68 for the 4AW version), and rated load range (1‑10 t) are listed, along with dimensional data for proper mounting. This manual is written in Chinese.
| Rated Load | 1‑10 t |
|---|---|
| Accuracy | 0.02%‑0.05% |
| Temperature Coefficient | 0.02%‑0.05%/°C |
| IP Protection | IP67 (4A), IP68 (4AW) |
| Excitation Voltage | 5‑12 V |
| Maximum Excitation Voltage | 15 V |
The sensor is rated for loads from 1 to 10 tonnes.
Use an excitation voltage of 5 to 12 V, with a maximum allowable voltage of 15 V.
The 4A version has an IP67 rating, while the 4AW version is rated IP68.
