The CZL-YB-RT type resistance strain type weighing sensor is a weighing sensor based on the strain gauge principle. The sensor is made of alloy steel and has the characteristics of high precision, high stability and high reliability. It is widely used in various weighing equipment.

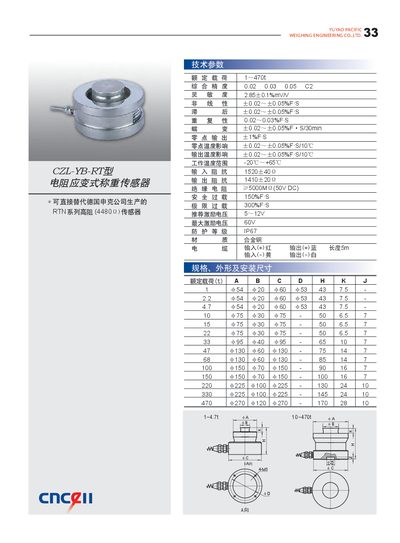

This manual provides technical parameters and installation guidance for the CZL‑TB‑RT resistance strain weight sensor manufactured by Yuyao Pacific Weighing Engineering. It includes rated load, accuracy, temperature range, and electrical characteristics needed for proper setup.
The document also lists dimensional specifications, IP protection rating, and recommended excitation voltage. Users can refer to the tables for calibration and performance data to ensure accurate weighing measurements. This manual is written in Chinese.
| Rated load | 1‑47 |
|---|---|
| Excitation voltage range | 5‑12 V |
| Maximum excitation voltage | 60 V |
| IP protection rating | IP67 |
| Operating temperature | -20 °C to +65 °C |
The sensor is rated for loads from 1 to 47 units (likely kilograms).
Use an excitation voltage between 5 V and 12 V, with a maximum of 60 V.
The sensor has an IP67 protection rating.
It can operate from –20 °C up to +65 °C.
