CZL-YB-7D type strain gauge load cell, rated load range of 2t-80t, with high precision, high sensitivity, low temperature drift, good linearity, strong anti-interference ability, high reliability and other features.

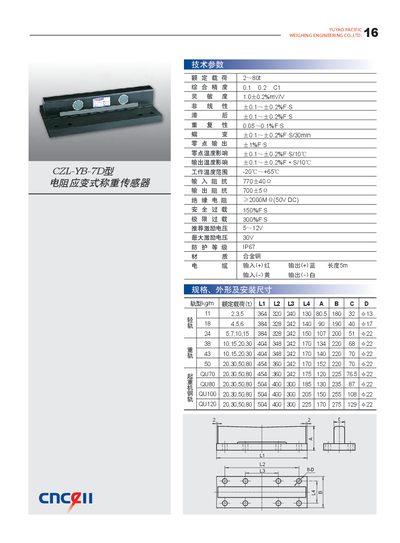

This manual details the technical specifications of the Yuyao Pacific CZL‑YB‑7D resistance strain weight sensor. It lists the rated load, accuracy, non‑linearity, hysteresis, repeatability, temperature effects, and safety limits.
Key environmental and electrical data are also included, such as the operating temperature range, IP67 protection rating, excitation voltage range, and output impedance. The document is intended for engineers who need to select or integrate the sensor into weighing systems. This manual is written in Chinese.
| Rated Load | 2‑80 t |
|---|---|
| Non‑linearity | 0.1‑0.2 %FS |
| Hysteresis | 0.1‑0.2 %FS |
| Repeatability | 0.05‑0.1 %FS |
| Temperature Coefficient | 0.1‑0.296 %FS/°C |
| Protection Rating | IP67 |
| Excitation Voltage | 5‑12 V (max 30 V) |
| Output Impedance | 700 Ω |
| Safety Factor | 150 %FS |
| Overload Limit | 300 %FS |
The sensor is rated for loads from 2 to 80 tonnes.
The sensor has an IP67 protection rating.
