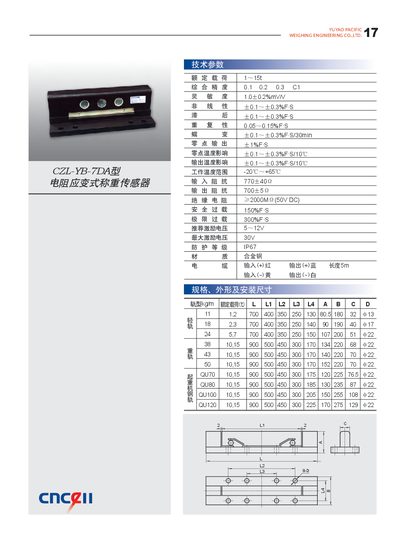

This document is the technical parameter table of CZL-YB-7DA type resistance strain type weighing sensor produced by YUYAO PACIFIC WEIGHING ENGINEERING CO.,LTD., including rated load, comprehensive accuracy, sensitivity, nonlinearity, lag, repeatability, creep, zero point, output, zero point temperature influence, output temperature influence, working temperature range, input resistance, output resistance, insulation resistance, safety overload, limit overload, recommended excitation voltage, maximum excitation voltage, protection class, material, cable, etc.
The CZL‑YB‑7DA is a resistance strain weight sensor designed for measuring loads from 1 t to 15 t. It offers high accuracy with a typical non‑linearity of 0.1‑0.396 % and repeatability of 0.05‑0.15 %.
The sensor operates in temperatures from –20 °C to +65 °C, requires an excitation voltage of 5‑12 V (maximum 30 V), and is protected to an IP67 rating, making it suitable for harsh industrial environments. This manual is written in Chinese.
| Rated Load | 1‑15 t |
|---|---|
| Accuracy | 0.1‑0.2 % |
| Non‑linearity | 0.1‑0.396 % |
| Hysteresis | 0.1‑0.39 % |
| Repeatability | 0.05‑0.15 % |
| Temperature Effect on Output | 0.1‑0.396 % |
| Excitation Voltage | 5‑12 V (max 30 V) |
| Maximum Excitation Voltage | 30 V |
| IP Protection | IP67 |
The sensor is rated for loads from 1 t up to 15 t.
It has an IP67 rating, providing dust‑tight and water‑resistant protection.
