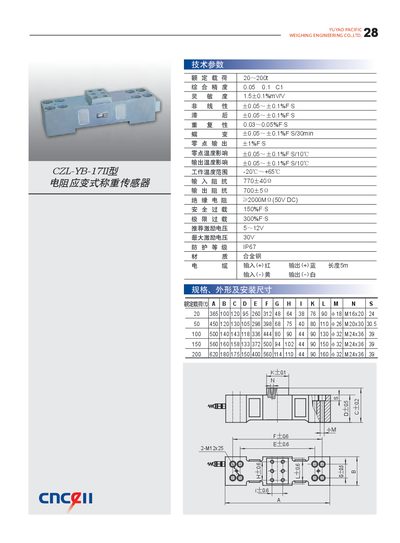

This is a technical parameter table of CZL-YB-17 type resistance strain type weighing sensor
This document provides the technical specifications for the CZL‑YB‑17 resistance strain weight sensor manufactured by Yuyao Pacific. It details the sensor's mechanical and electrical characteristics, including load capacity, accuracy, temperature effects, and excitation requirements.
Key performance figures such as rated load (20‑200 t), full‑scale accuracy (0.005 % FS), hysteresis, repeatability, drift, and protection rating (IP67) are presented, along with the recommended excitation voltage range (5‑12 V, max 30 V) and operating temperature limits (‑20 °C to +65 °C). This manual is written in Chinese.
| Rated Load | 20‑200 t |
|---|---|
| Full‑Scale Accuracy | 0.005 % FS |
| Hysteresis | 0.05‑0.1 % FS |
| Repeatability | 0.03‑0.05 % FS |
| Drift (30 min) | 0.05‑0.1 % FS |
| Zero‑point Temperature Effect | 0.05‑0.1 % FS per 10 °C |
| Full‑Scale Temperature Effect | 0.05‑0.1 % FS per 10 °C |
| Operating Temperature | -20 °C to +65 °C |
| Excitation Voltage | 5‑12 V (max 30 V) |
| Protection Rating | IP67 |
The sensor is rated for loads between 20 t and 200 t.
The recommended excitation voltage is 5 V to 12 V, with a maximum of 30 V.
It can operate from –20 °C up to +65 °C.
The sensor has an IP67 protection rating.
