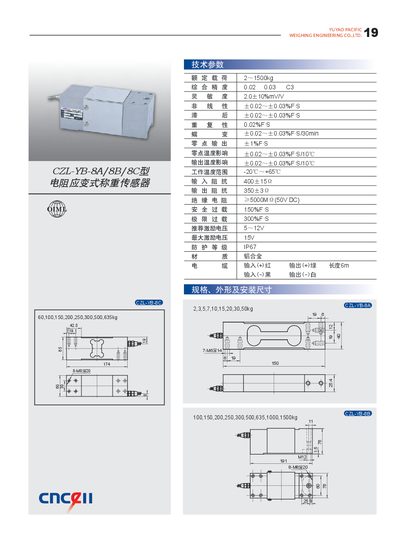

CZL-YB-8A/8B/8C type strain gauge load cell is composed of high precision strain gauge, high precision measurement amplifier, waterproof junction box, waterproof connector and so on. The sensor has good linearity, high precision, high stability, waterproof and dustproof, convenient installation and other characteristics.
The CZL‑YB‑8 series is a resistance strain weight sensor designed for industrial weighing applications. It offers a wide load range and high stability across temperature variations.
Key specifications include a rated load of 2–1500 kg, combined accuracy of about 0.02 %FS, sensitivity of 2.0 mV/V, and IP67 protection. The sensor operates with an excitation voltage of 5–12 V (maximum 15 V) and provides low non‑linearity, hysteresis and repeatability errors. This manual is written in Chinese.
| Rated Load | 2–1500 kg |
|---|---|
| Combined Accuracy | 0.02 %FS |
| Sensitivity | 2.0 mV/V |
| Nonlinearity | 0.02–0.03 %FS |
| Hysteresis | 0.02–0.03 %FS |
| Repeatability | 0.02 %FS |
| Zero Drift (30 min) | 0.02–0.039 %FS/30 min |
| Excitation Voltage | 5–12 V (max 15 V) |
| Maximum Excitation Voltage | 15 V |
| IP Rating | IP67 |
The sensor can measure loads from 2 kg up to 1500 kg.
It operates with an excitation voltage of 5 V to 12 V, with a maximum of 15 V.
The sensor is protected to IP67, suitable for harsh environments.
