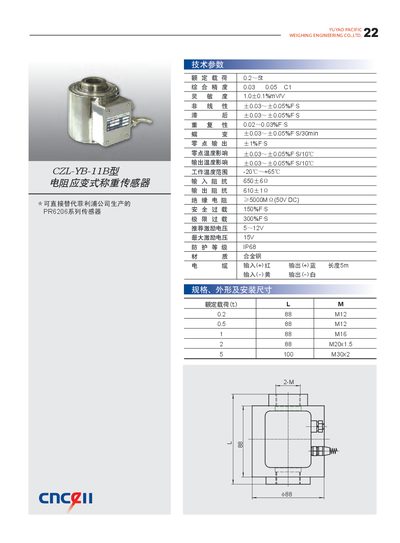

This document introduces the specifications, dimensions, and installation dimensions of CNCELLS CZL-YB-11B strain gauge load cell, which can directly replace the PR6206 series sensors produced by Philips. The load cell has a rated load of 1.0±0.1%mV/V, a sensitivity of 0.03, a non-linearity of 0.05, and a working temperature range of -20℃ to +65℃. It has an IP68 protection rating and a safety overload limit of 150%F.S. The recommended excitation voltage is 5～12V. The load cell is made of alloy steel and the cable length is 5m.
The YUYAD PACIFIC PR6206 is a resistance strain weight sensor designed for precise load measurement. It offers a range of rated loads from 0.2 kg to 5 kg with corresponding mounting thread sizes.
Key features include a temperature operating range of –20 °C to +65 °C, recommended excitation voltage of 5‑12 V (max 15 V), IP68 protection, and an alloy‑steel construction. Electrical connections are colour‑coded for easy wiring. This manual is written in Chinese.
| Temperature range | -20 °C to +65 °C |
|---|---|
| Recommended excitation voltage | 5‑12 V |
| Maximum excitation voltage | 15 V |
| Protection rating | IP68 |
| Rated load 0.2 kg | M12 thread |
| Rated load 5 kg | M30×2 thread |
The recommended excitation voltage is 5 to 12 V.
It has an IP68 protection rating.
The sensor operates from –20 °C to +65 °C.
