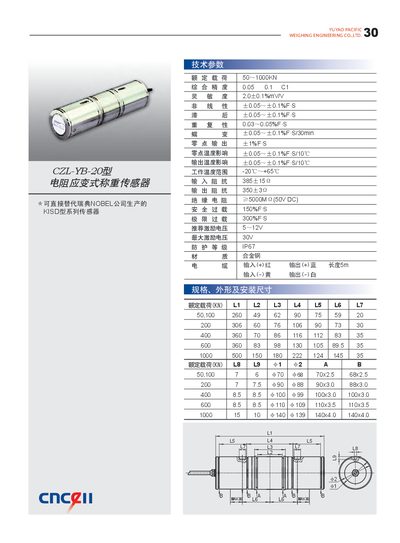

This document introduces the specifications, dimensions, installation dimensions, and technical parameters of the CZL-YB-20 strain gauge load cell produced by CNCELLS. The sensor can directly replace the KISD series sensors produced by NOBEL of Sweden. The rated load range is from 50KN to 1000KN. The sensor has the characteristics of high precision, sensitivity, and small non-linear hysteresis. The working temperature range is from -20℃ to +65℃. The product is made of alloy steel and has an IP67 protection level. The cable length is 5m, with red and yellow as input terminals and blue and white as output terminals.
The CZL-YB-20 is a resistance strain weight sensor designed for high‑capacity weighing applications. It offers a rated load range from 50 kN up to 1000 kN and features high accuracy and stability across various environmental conditions.
The document provides detailed technical parameters such as sensitivity, non‑linearity, hysteresis, temperature effects, excitation voltage, and IP67 protection. Dimensional tables and electrical characteristics are also included for integration into weighing systems. This manual is written in Chinese.
| Rated Load | 50‑1000 kN |
|---|---|
| Sensitivity | 2.0 µV/V |
| Nonlinearity | 0.05‑0.1 % FS |
| Hysteresis | 0.05‑0.1 % FS |
| Repeatability | 0.03‑0.05 % FS |
| Drift (30 min) | 0.05‑0.1 % FS |
| Temperature Effect on Zero Point | 0.05‑0.1 % FS/10 °C |
| Temperature Effect on Span | 0.05‑0.1 % FS/10 °C |
| Operating Temperature | -20 °C to +65 °C |
| Excitation Voltage | 5‑12 V (max 30 V) |
| Maximum Excitation Voltage | 30 V |
| Protection Rating | IP67 |
The sensor is rated for loads from 50 kN up to 1000 kN.
It can operate between –20 °C and +65 °C.
The sensor requires an excitation voltage of 5 V to 12 V, with a maximum of 30 V.
The sensor is protected to IP67 standards.
