CZL-YB-11D type resistance strain gauge load cell is a load cell produced by YUYAO PACIFIC WEIGHING ENGINEERING CO.,LTD., which has the characteristics of high sensitivity, stable output and high accuracy. It can be widely used in various weighing occasions

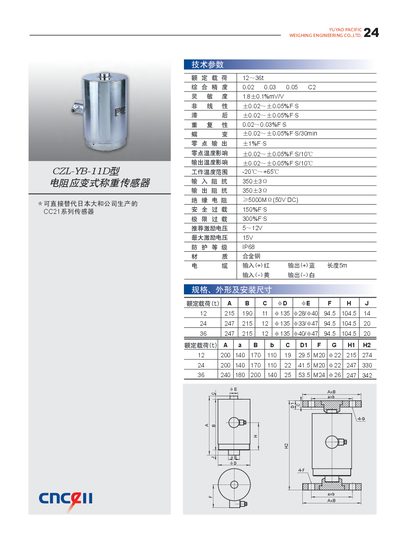

This datasheet provides the key technical parameters of the Yuyao Pacific CZL‑YB‑11D resistance strain weight sensor. It lists the rated load range of 12‑36 t, full‑scale accuracy, sensitivity, non‑linearity, hysteresis, repeatability and the influence of temperature on zero and span.
Electrical characteristics such as excitation voltage (5‑12 V, max 15 V), output impedance (350 Ω), IP68 protection and material construction are also detailed, together with the operating temperature range of –20 °C to +65 °C and dimensional data for different load capacities. This manual is written in Chinese.
| Rated load | 12‑36 t |
|---|---|
| Nonlinearity | 0.02‑0.05 % FS |
| Hysteresis | 0.02‑0.05 % FS |
| Repeatability | 0.02‑0.03 % FS |
| Zero balance drift | 1 % FS |
| Temperature coefficient of zero | 0.02‑0.05 % FS/10 °C |
| Temperature coefficient of span | 0.02‑0.05 % FS/10 °C |
| Operating temperature | -20 °C to +65 °C |
| Excitation voltage | 5‑12 V (max 15 V) |
| Maximum excitation voltage | 15 V |
| Ingress protection | IP68 |
| Output impedance | 350 Ω |
| Safety factor | 150 % FS |
The sensor is rated for loads between 12 t and 36 t.
It can operate from –20 °C up to +65 °C.
The recommended excitation voltage is 5 V to 12 V, with a maximum of 15 V.
Yes, it has an IP68 protection rating.
