This file details the characteristics of the 804-10 Rev. 2.5 P-channel power MOSFET, including maximum voltage, current, power and thermal resistance.

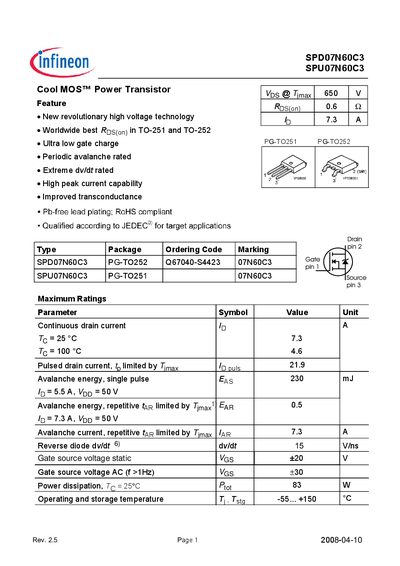

The Cool MOS™ Power Transistor family from Infineon includes the SPD07N60C3 and SPU07N60C3 devices, designed for high‑voltage, high‑current applications with low gate charge and robust avalanche capability. The datasheet details the electrical parameters, thermal characteristics, and typical performance curves needed for design and verification.
Key features include a continuous drain current of 7.3 A at 25 °C, a 600 V drain‑source breakdown voltage, low on‑state resistance, and detailed switching time and loss data. Package dimensions and mechanical drawings are also provided for PCB layout.
