This document is about PROFET® BTS 6133D data sheet. The product has reverse battery protection, reverse operation, short circuit protection, current limiting, overload protection, thermal shutdown, overvoltage protection, loss of ground protection, loss of Vbb protection, low standby current, fast demagnetization etc.
The Infineon PROFET BTS6133D is a smart high‑side power switch designed for 12 V and 24 V DC grounded loads. It integrates a vertical N‑channel power MOSFET with charge‑pump, current‑controlled input, and diagnostic feedback for load‑current sensing. The device replaces electromechanical relays, fuses and discrete circuits in resistive, inductive and capacitive load applications.

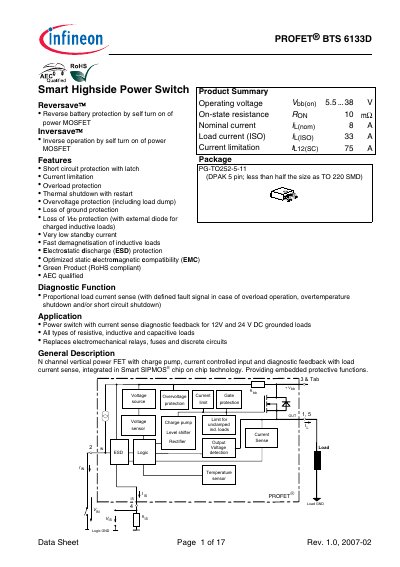

The datasheet provides detailed electrical and thermal characteristics, pin definitions, protection functions (short‑circuit, overload, over‑voltage, reverse‑battery, ESD, etc.), and diagnostic behavior. It also includes a truth table for output states and guidelines for parallel operation to increase load‑current capability.
