BAR65 is a silicon PIN diode used for low loss transmit-receiver switches in mobile communication and band switch for TV-tuners. It has very low forward resistance and low capacitance, making it suitable for fast switching applications.

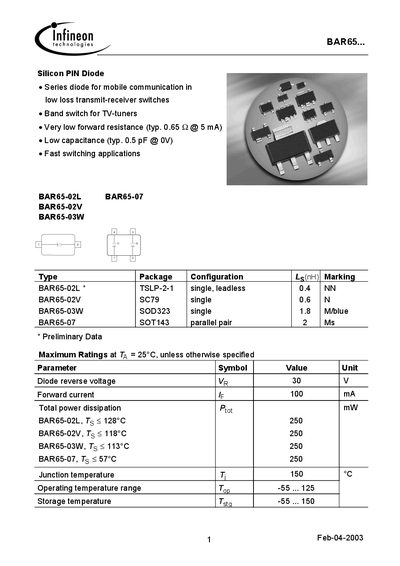

The BAR65 series silicon PIN diodes are designed for low‑loss transmit‑receiver switches in mobile communications, TV tuners, and fast‑switching applications. Variants include BAR65-02L, BAR65-02V, BAR65-03W, and BAR65-07, each offered in different package types such as TSLP‑2‑1 leadless, SC79, SOD‑323, and 0OT143 parallel pair.
Key specifications include a maximum reverse voltage of 30 V, forward current rating of 100 mA, typical forward voltage of 0.93 V at 100 mA, junction temperature up to 150 °C, and very low capacitance (0.5 pF at 1 MHz). Thermal resistance values range from <90 K/W to <370 K/W depending on the package.
