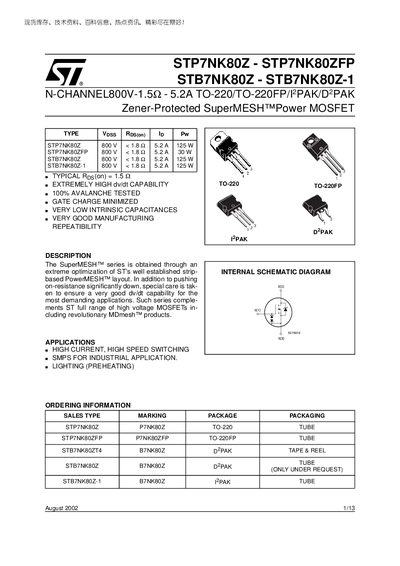

STP7NK80Z - STP7NK80ZFP STB7NK80Z - STB7NK80Z-1 is ST’s N-CHANNEL800V-1.5Ω - 5.2A TO-220/TO-220FP/I2PAK/D2PAK Zener-Protected SuperMESH™Power MOSFET, with extremely high dv/dt capability and can be used in high current, high speed switching, SMPS applications.
The STP7NK80Z, STP7NK80ZFP, STB7NK80Z and STB7NK80Z‑1 are N‑channel power MOSFETs rated for 800 V and up to 5.2 A continuous drain current. They feature a SuperMESH™ layout that minimizes gate charge, provides very low intrinsic capacitances and excellent dv/dt performance, making them suitable for high‑speed, high‑current switching in SMPS and industrial lighting.
The devices are offered in several TO‑220‑family packages (TO‑220, TO‑220FP, DPAK, IPPAK) with detailed thermal and mechanical data. Absolute maximum ratings, avalanche characteristics, and built‑in gate‑source Zener protection are documented to aid designers in reliable system integration.
| Drain‑source voltage (VDS) | 800 V |
|---|---|
| Pulsed drain current (ID,pulse) | 20.8 A |
The device is rated for a maximum drain‑source voltage of 800 V.
