This model is a N-channel power MOSFET device from ST company. Its features are low on-resistance, rugged avalanche characteristics and less critical alignment steps, therefore a remarkable manufacturing reproducibility.

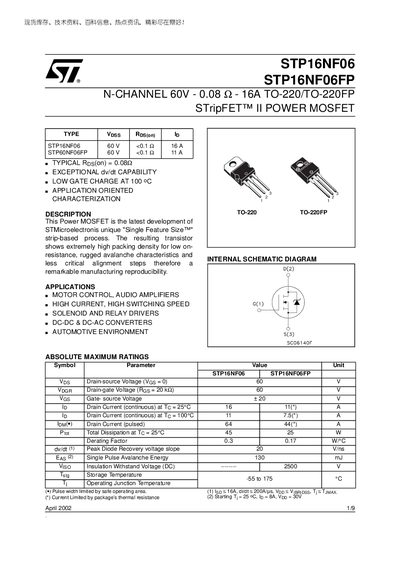

The STP16NF06FP is a 60 V N‑channel Power MOSFET built with STMicroelectronics' Single Feature Size™ strip‑based process, delivering a high packing density, low on‑resistance (typical 0.082 Ω) and robust avalanche characteristics. The device is offered in TO‑220 and TO‑220FP packages and includes an internal schematic diagram for reference.
Typical applications include motor control, audio amplifiers, solenoid and relay drivers, DC‑DC and DC‑AC converters, and automotive environments. The datasheet provides absolute maximum ratings, detailed electrical characteristics, thermal data, mechanical dimensions, and safety notices.
| Typical On‑Resistance (RDS(on)) | 0.082 Ω |
|---|
The typical on‑resistance is 0.082 Ω.
