STP16NF06 is a N-channel MOSFET from STMicroelectronics. Its features are typical RDS(on) = 0.08 Ω, exceptional dv/dt capability and low gate charge (100 °C), suitable for motor control, audio amplifiers, high current, high switching speed, solenoid and relay drivers, DC-DC and DC-AC converters, automotive and other applications.

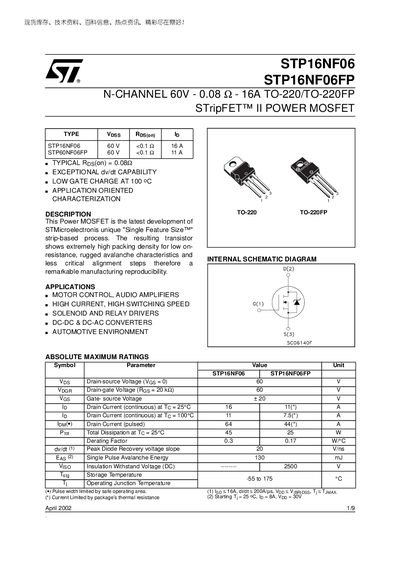

The STP16NF06 and STP16NF06FP are N‑channel Power MOSFETs fabricated with STMicroelectronics' Single Feature Size™ strip‑based process, offering low on‑resistance, high current capability, and robust avalanche performance. They are supplied in TO‑220 and TO‑220FP packages and are intended for motor control, audio amplifiers, solenoid and relay drivers, DC‑DC converters, and automotive applications.
The document details absolute maximum ratings, electrical characteristics such as drain‑source voltage, continuous and pulsed drain current, gate charge, and switching times, as well as thermal data, mechanical dimensions, and reliability notes. It also includes test circuit diagrams and safety disclaimer information.
| Thermal resistance junction‑to‑ambient (RθJA) | 62.5 °C/W |
|---|
