STP60NH2LL is an N-channel power MOSFET that utilizes ST's STripFET™ technology. It has low conduction and switching losses, making it suitable for high-efficiency DC-DC converter applications.

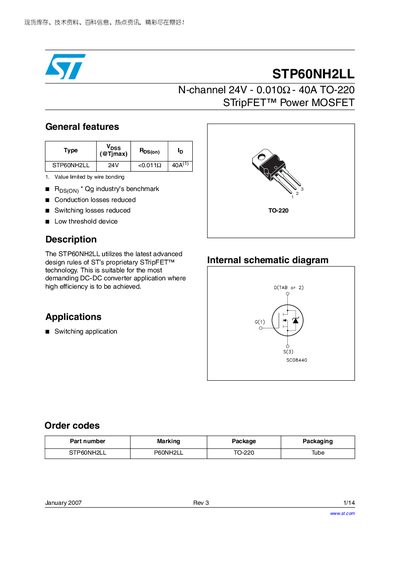

This document provides the electrical ratings, characteristic curves, and thermal data for the STP60NH2LL N‑channel 24 V power MOSFET. It includes absolute maximum ratings, on‑state resistance, capacitances, gate charge, and recommended test circuits for switching and diode recovery.
The datasheet also lists the TO‑220 package dimensions, revision history, and legal notices. It is intended for designers of DC‑DC converters and other high‑efficiency power applications.
| Drain‑source voltage rating | 30 V |
|---|---|
| Drain‑source voltage (Vgs=0) | 24 V |
| Gate‑source voltage | 18 V |
| Continuous drain current @ 25 °C | 40 A |
| Total dissipation @ 25 °C | 60 W |
| Package type | TO‑220 |
The maximum continuous drain current at 25 °C is 40 A.
The STP60NH2LL is supplied in a TO‑220 package.
The device is rated for a maximum drain‑source voltage of 30 V.
