This document introduces a N-channel power MOSFET product with extremely high dv/dt capability and low input capacitance and gate charge. It is suitable for high-efficiency DC/DC converters, industrial and lighting equipment, and motor control applications.

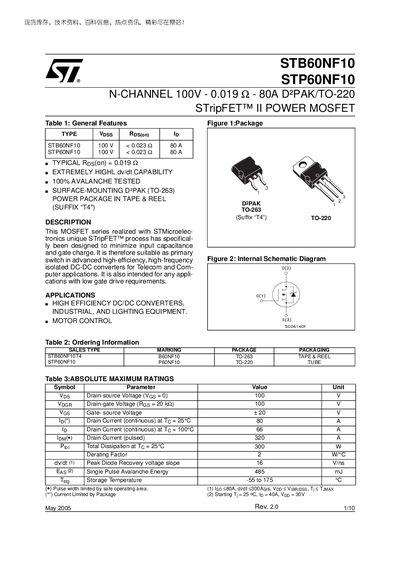

The STB60NF10 and STP60NF10 are N‑channel 100 V power MOSFETs offered in D2PAK (TO‑263) and TO‑220 packages. They feature low on‑resistance (typical 0.019 Ω), high current capability (80 A continuous) and fast switching suitable for high‑efficiency DC‑DC converters and motor control.
The document provides absolute maximum ratings, thermal characteristics, electrical parameters, switching times, mechanical dimensions and ordering information, along with a revision history and legal disclaimer.
| Continuous Drain Current (ID) | 80 A |
|---|---|
| Typical On‑Resistance (RDS(on)) | 0.019 Ω |
| Thermal Resistance Junction‑Case (RθJC) | 0.5 °C/W |
The maximum continuous drain current is 80 A at 25 °C.
The typical on‑resistance is 0.019 Ω.
