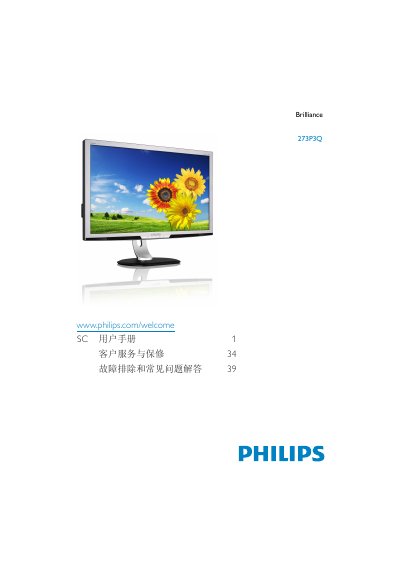

Philips 273P3Q monitor user manual, including product features, installation, operation, image optimization, warranty and other information
This user manual covers everything needed to install, operate, and maintain the Philips 273P3Q Brilliance 27‑inch monitor. It includes safety measures, step‑by‑step installation, on‑screen display (OSD) navigation, and detailed explanations of SmartImage, SmartContrast, and Power Sensor™ functions.
The guide also lists the monitor’s technical specifications, recommended operating conditions, power consumption figures, and a comprehensive troubleshooting section that addresses common issues such as image burn‑in, resolution settings, and driver installation. This manual is written in Chinese.
| Panel type | AMVA‑LCD with LED backlight |
|---|---|
| Screen size | 27" (68.6 cm) diagonal |
| Resolution | 1920 × 1080 @ 60 Hz (native) |
| Brightness | 300 cd/m² |
| Contrast ratio (typical) | 5000:1 |
| Response time (typical) | 12 ms |
| Typical power consumption | 35.8 W |
| Maximum power consumption | 54 W |
| Input signals | DVI, VGA, DisplayPort, USB |
Turn off the computer, connect a VGA, DVI, or DisplayPort cable for video, an audio cable if needed, the USB upstream cable, then plug the power cord and turn on both devices.
Use the native resolution of 1920 × 1080 at 60 Hz for optimal image quality.
Wipe the panel with a soft, dry cloth; for deeper cleaning use a slightly damp cloth, but never use alcohol, ammonia, or other solvents.
The monitor consumes about 35.8 W in typical operation.
