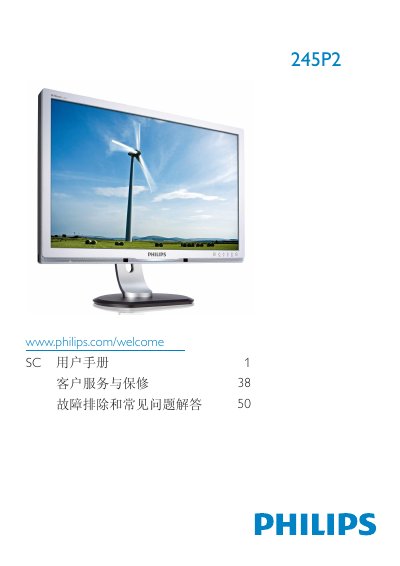

This is the user manual of Philips 245P2 monitor, which introduces the installation, operation, product information, technical specifications and other contents of the monitor
This manual covers important safety measures, proper handling, and disposal of the Philips 245P2 LCD monitor. It explains how to install the unit, operate the on‑screen display (OSD), adjust picture settings, and remove the base for VESA mounting.
The document also lists the monitor’s technical specifications, compliance information, warranty conditions, and a detailed FAQ that helps resolve common issues such as unsupported video modes, recommended refresh rates, and cleaning procedures. This manual is written in Chinese.
| Panel type | TFT‑LCD |
|---|---|
| Screen size | 24" (61.0 cm) |
| Aspect ratio | 16:10 |
| Resolution | 1920 × 1200 @ 60 Hz |
| Brightness | 300 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Response time (typical) | 5 ms |
| Vertical refresh rate | 48 Hz – 85 Hz |
| Connectivity | DVI‑D (HDCP), VGA, USB 2.0 x1 |
| Power consumption (typical) | 34.8 W |
| VESA mount | 100 mm × 100 mm |
Wipe the screen with a dry soft cloth; for deeper cleaning use isopropyl alcohol. Do not use regular alcohol, ethanol, acetone, or other solvents.
