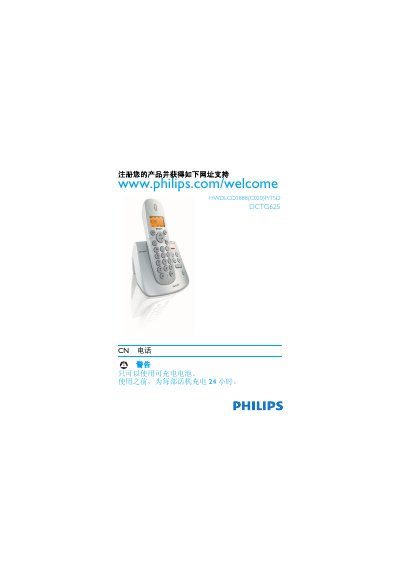

This is the user manual of Philips phone, which includes the usage methods, function settings, safety information and so on
This manual guides you through registering the phone, connecting it to the base, and using its core functions such as making and receiving calls, accessing the phonebook, and configuring alarms. It also covers advanced features like auto‑answer, baby mode, SOS numbers, and country‑specific dialing settings.
Safety information, power requirements (220‑240 V AC), recycling instructions, and EMF compliance are detailed, along with a full list of technical data including display type, battery type, power consumption, dimensions, and environmental limits. This manual is written in Chinese.
| Display type | Enhanced LCD backlight |
|---|---|
| Backlight color | Amber |
| Ringtones | 10 polyphonic tones |
| Phonebook capacity | 100 entries |
| Redial list capacity | 5 entries |
| Call history capacity | 20 entries |
| Battery type | 2 × HR AAA NiMH 550 mAh rechargeable |
| Idle power consumption | ≈ 800 mW |
| Dimensions (H × W × D) | 117 mm × 109 mm × 82 mm |
| Operating temperature range | 0 °C to 35 °C |
| Storage temperature range | -20 °C to 45 °C |
It uses two HR AAA nickel‑metal‑hydride rechargeable batteries rated at 550 mAh.
The backlight remains illuminated for about 15 seconds each time the phone is activated.
The device requires a 220‑240 V AC power source.
The phone can store up to 100 phonebook entries.
