CM150TL-24NF is a 150A, 1200V IGBT module manufactured by Mitsubishi Electric. It is suitable for AC drive inverters and servo controls
The CM150TL-24NF is a high‑power insulated IGBT module designed for use in AC drive inverters, servo controls and similar applications. It features a six‑element pack with a 1200 V collector‑emitter rating and a typical weight of 750 g.

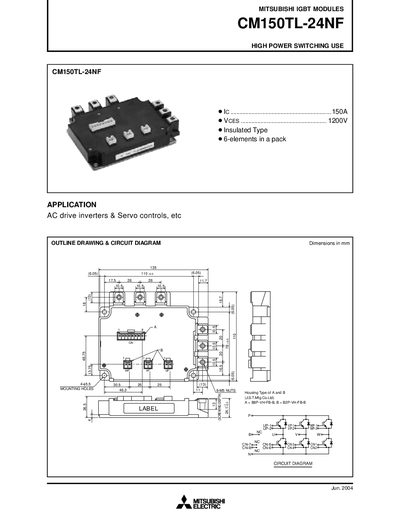

The datasheet lists absolute maximum ratings, detailed electrical characteristics, and extensive performance curves covering collector‑emitter voltage, gate‑emitter voltage, capacitances, switching loss, and thermal impedance. Key parameters such as a 150 A continuous collector current, 300 A pulse capability, and a 2500 V isolation voltage are highlighted.
| Continuous collector current (Ic) | 150 A |
|---|---|
| Pulse collector current | 300 A |
| Junction temperature range | -40 °C to +150 °C |
| Storage temperature range | -40 °C to +125 °C |
| Typical weight | 750 g |
The module can carry a continuous collector current of 150 A.
Its typical weight is 750 g.
