CM150DY-12NF is a Mitsubishi IGBT module with a rated current of 150A and a rated voltage of 600V. It uses a dual element package.
The CM150DY-12NF is a high‑power insulated IGBT module intended for general‑purpose inverters, servo controls and similar applications. The document lists maximum ratings, electrical characteristics, and typical performance curves for the device.

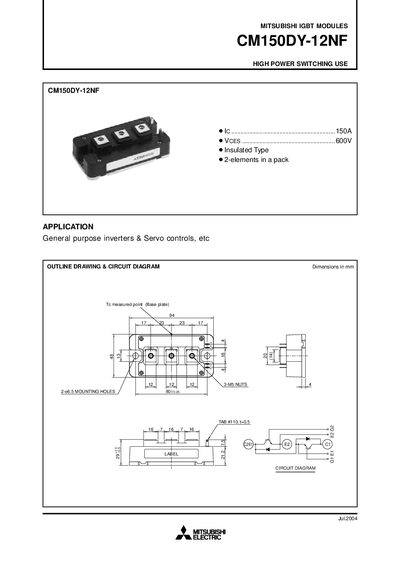

Key specifications include collector‑emitter voltage of 600 V, gate‑emitter voltage of +20 V, continuous collector current of 150 A, and a typical weight of 310 g. Thermal resistance, capacitance values, and reverse‑recovery characteristics are also provided, along with detailed circuit diagrams and outline drawings.
| Gate‑emitter voltage (VGES) | +20 V |
|---|---|
| Maximum collector dissipation | 590 W |
| Junction temperature range (Tj) | 40 ~ +150 °C |
| Storage temperature range (Tsig) | 40 ~ +125 °C |
| Typical weight | 310 g |
| Turn‑on delay time (td(on)) | 120 ns |
| Thermal resistance (Rth(j‑c)) | 0.21 °C/W |
The typical weight is 310 g.
The turn‑on delay time is specified as 120 ns.
