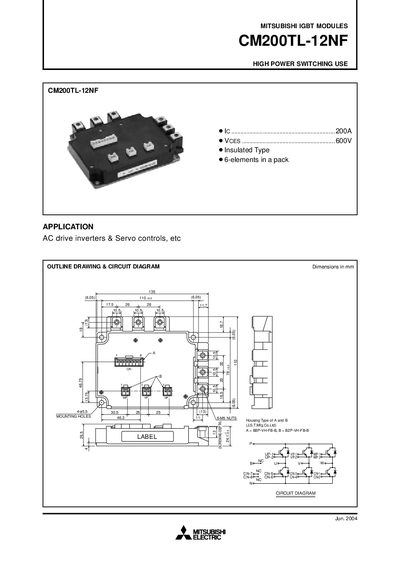

This is a CM200TL-12NF IGBT module produced by MITSUBISHI. The module is packaged with 6 IGBT devices in an insulated housing, with a current capacity of 200A and a voltage rating of 600V.
The Mitsubishi CM200TL-12NF is a high‑power insulated IGBT module designed for AC drive inverters, servo controls and similar applications. It features a six‑element pack with a collector‑emitter voltage rating of 600 V and a typical weight of 750 g.
The document provides absolute maximum ratings, detailed electrical characteristics, thermal performance curves, and gate‑charge data. It also includes mechanical dimensions, mounting hole specifications, and isolation voltage information for system integration.
| Continuous collector current (Ic) | 200 A |
|---|---|
| Typical weight | 750 g |
| Input capacitance (Cies) | 30 nF |
| Turn‑on delay time (t(on)) | 120 ns |
The module can handle a continuous collector current of 200 A.
The typical weight of the module is 750 g.
