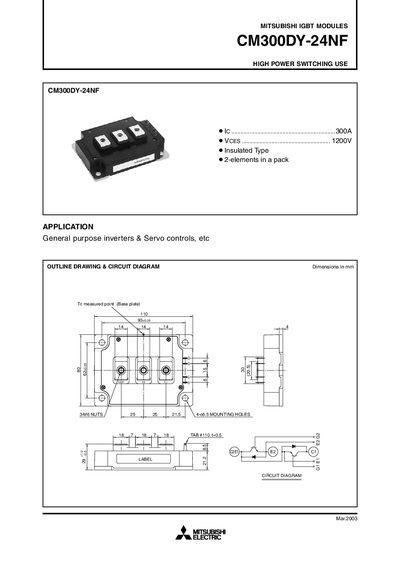

The document describes the features and characteristics of MITSUBISHI IGBT MODULES CM300DY-24NF for high power switching applications, suitable for general purpose inverters, servo controls, etc.
The CM300DY-24NF is a high‑power IGBT module intended for general‑purpose inverters, servo controls and similar applications. The document lists maximum ratings, electrical characteristics, and thermal limits for the insulated, two‑element pack.
Key specifications include a collector‑emitter voltage of 1200 V, a gate‑emitter voltage of +20 V, and a continuous collector current of 300 A (600 A pulse). Thermal data, isolation voltage, capacitances, switching times and typical weight (580 g) are also provided, together with performance curves and transient characteristics.
| Collector‑emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑emitter voltage (VGES) | +20 V |
| Continuous collector current (Ic) | 300 A |
| Pulse collector current | 600 A |
| Junction temperature range | -40 °C to +150 °C |
| Storage temperature range | -40 °C to +125 °C |
| Isolation voltage (Main Terminal to base plate) | 2500 V AC (1 min) |
| Typical weight | 580 g |
| Input capacitance (Cies) | 70 nF |
| Turn‑on delay time (td(on)) | 500 ns |
The module can carry a continuous collector current of 300 A (DC).
It offers an isolation voltage of 2500 V AC for 1 minute.
The junction temperature can be from –40 °C up to +150 °C, and storage temperature from –40 °C to +125 °C.
The typical weight is 580 g.
