The CM100TL-12NF is a 600V, 100A IGBT module from Mitsubishi Electric. It is an insulated type and can be widely used in AC drive inverters and servo controls.
The CM100TL-12NF is a high‑power insulated IGBT module designed for use in AC drive inverters, servo controls and similar applications. It features a six‑element pack, a compact housing, and mounting options suitable for high‑current switching circuits.

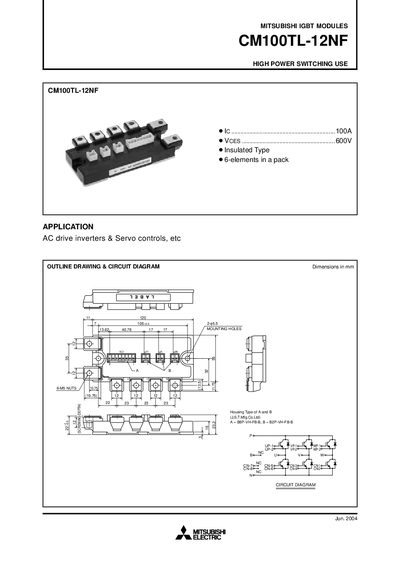

The document lists absolute maximum ratings, detailed electrical characteristics, performance curves, reverse‑recovery data, thermal impedance, and gate‑charge information. It also includes mechanical dimensions, mounting hole specifications, and typical weight, enabling engineers to integrate the module into their designs with confidence.
| Continuous collector current (Ic) | 100 A |
|---|---|
| Typical weight | 350 g |
The module can handle a continuous collector current of 100 A.
The typical weight of the module is 350 g.
