This document describes the features and characteristics of the CM600DY-12NF high power switching module from MITSUBISHI, which is suitable for general purpose inverters and servo controls.

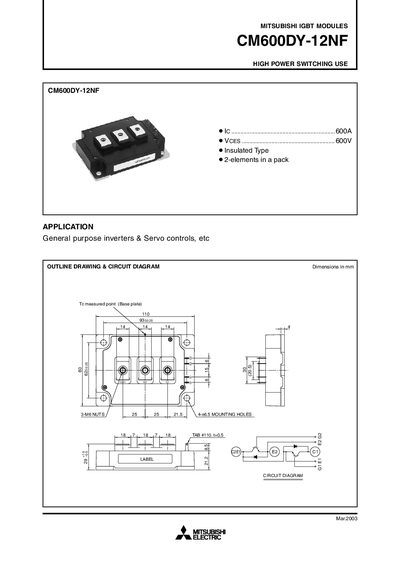

The CM600DY-12NF is a high‑power IGBT module intended for general‑purpose inverters, servo controls and similar applications. It features an insulated type package with two elements in a pack and includes outline drawings and circuit diagrams.
The document lists maximum electrical ratings, thermal characteristics, and detailed performance curves such as collector‑emitter saturation voltage, gate‑emitter voltage, and reverse‑recovery behavior, enabling designers to assess suitability for high‑current switching tasks.
| Junction temperature (Tj) range | -40 °C to +150 °C |
|---|---|
| Storage temperature (Tstg) range | -40 °C to +125 °C |
| Weight (typical) | 580 g |
| Input capacitance (Cies) | 90 nF |
| Turn‑on delay (td(on)) | 500 ns |
The junction temperature can operate from –40 °C up to +150 °C, and it can be stored from –40 °C to +125 °C.
