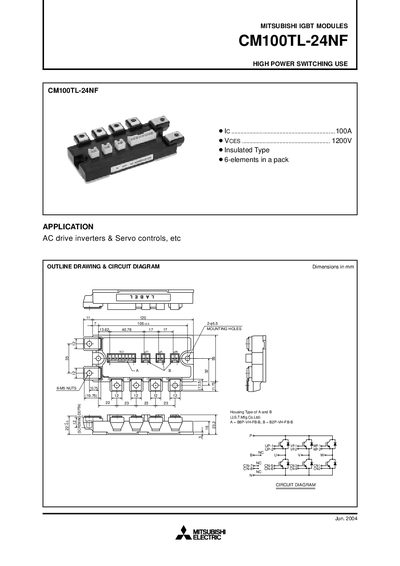

The document provides information on the application of AC drive inverters and servo controls using MITSUBISHI IGBT MODULES CM100TL-24NF for high power switching. It includes an outline drawing, circuit diagram, and specifications of the module.
The CM100TL-24NF is a high‑power IGBT module designed for use in AC drive inverters, servo controls and similar applications. It features an insulated type package with six elements and a compact outline drawing for easy mounting.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, thermal performance, and switching behavior, including collector‑emitter voltage, gate‑emitter voltage, collector current limits, power dissipation, and typical weight. Performance curves illustrate saturation voltage, capacitance, and transient thermal behavior under various conditions.
| Gate‑Emitter Voltage (VGE) | +20 V |
|---|---|
| Collector Current (DC) | 100 A |
| Pulse Collector Current | 200 A |
| Maximum Power Dissipation | 620 W |
| Junction Temperature Range | -40 °C to +150 °C |
| Storage Temperature Range | -40 °C to +125 °C |
| Isolation Voltage (Main Terminal) | 2500 V |
| Typical Weight | 350 g |
The rated continuous collector current is 100 A at 80 °C case temperature.
It can dissipate up to 620 W at a case temperature of 25 °C.
The typical weight is about 350 g.
