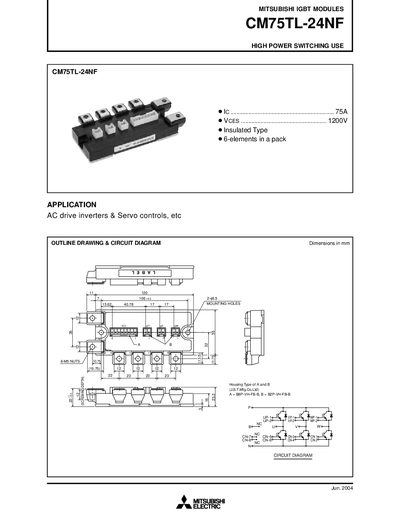

CM75TL-24NF is a high power switching IGBT module manufactured by Mitsubishi Electric. It has a rated current of 75A and a rated voltage of 1200V. The package is 6-elements in a pack.
The CM75TL-24NF is a high‑power IGBT module designed for use in AC drive inverters, servo controls and similar applications. It features an insulated type package with six elements in a single pack and is supplied in two housing types (A and B).\n\nKey specifications include a collector‑emitter voltage rating of 1200 V, a continuous collector current of 75 A (150 A pulse), a maximum power dissipation of 520 W, and a typical weight of 350 g. The module offers a wide operating temperature range (‑40 °C to +150 °C) and includes detailed performance curves for switching and reverse‑recovery characteristics.
| Continuous collector current (Ic) | 75 A |
|---|---|
| Pulse collector current | 150 A |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Storage temperature range (Tstg) | -40 °C to +125 °C |
| Typical weight | 350 g |
| Input capacitance (Cies) | 11.5 nF |
| Turn‑on delay time (td(on)) | 100 ns |
The typical weight is 350 g.
It can operate from –40 °C up to +150 °C junction temperature, with storage allowed from –40 °C to +125 °C.
The continuous collector current rating is 75 A.
