CM200DY-24NF is a IGBT module from Mitsubishi Electric. It has a rated current of 200A and a rated voltage of 1200V.
The CM200DY-24NF is a high‑power IGBT module designed for general‑purpose inverters, servo controls and other high‑current switching uses. It features a 1200 V collector‑emitter rating, 200 A continuous collector current and a typical weight of 400 g.

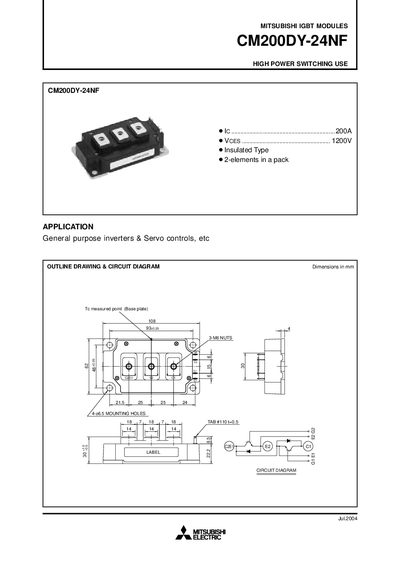

The datasheet lists detailed electrical characteristics such as gate‑emitter voltage, input and output capacitances, turn‑on/turn‑off times, and thermal resistance. Mechanical information includes outline drawing, mounting hole dimensions and isolation voltage of 2500 V between the main terminal and the base plate.
| Collector current (Ic) | 200 A |
|---|---|
| Junction temperature range (Tj) | -40 °C ~ +150 °C |
| Weight | 400 g |
| Input capacitance (Cies) | 47 nF |
| Thermal resistance (Rth(j‑c)) | 0.11 °C/W |
It can carry a continuous collector current of 200 A (400 A pulse).
The typical weight of the module is about 400 g.
