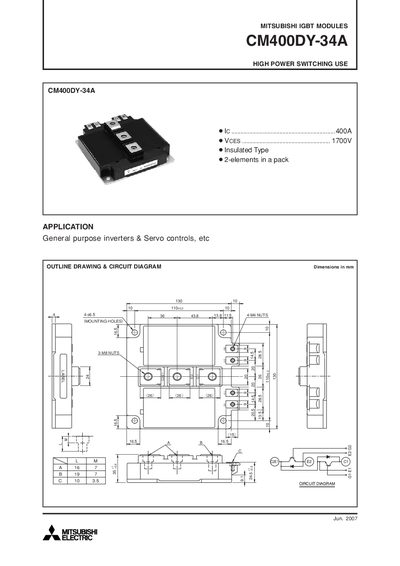

Mitsubishi CM400DY-34A IGBT Module Datasheet

This document provides detailed information about the CM400DY-34A product, including dimensions and specifications.

Brand: Mitsubishi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 126 KB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: 1F6E4AD01589763D3746A1EB09440DE8
PDF: Mitsubishi CM400DY-34A IGBT Module Datasheet PDF

About this manual

The CM400DY-34A is a high‑power insulated IGBT module intended for general‑purpose inverters, servo controls and similar applications. The document lists absolute maximum ratings, electrical characteristics, and mechanical outline drawings for the device.

Key specifications include a collector‑emitter voltage of 1700 V, a continuous collector current of 400 A, and a maximum dissipation of 3780 W. Performance curves and switching characteristics are provided, along with thermal and gate‑charge data to aid in design and integration.

What's inside

Application
Outline Drawing & Circuit Diagram
Absolute Maximum Ratings
Electrical Characteristics
Performance Curves
Half‑Bridge Switching Characteristics
Transient Thermal
Reverse Recovery Characteristics
Impedance Characteristics
Gate Charge Characteristics

Specifications

Typical weight	1200 g
Junction temperature range (Tj)	-40 °C to +150 °C
Storage temperature range (Tstg)	40 °C to +125 °C

Frequently asked questions

What is the typical weight of the module?

The typical weight is 1200 g.
