CM75TL-12NF is a high power switching device produced by Mitsubishi Electric. It has a rated current of 75A and a rated voltage of 600V. It is an insulated package and 6 devices are assembled into a module.
This document details the specifications of the Mitsubishi CM75TL-12NF IGBT module, a high‑power switching device used in AC drive inverters, servo controls, and similar applications. It includes absolute maximum ratings, electrical characteristics, thermal data, and typical performance curves.

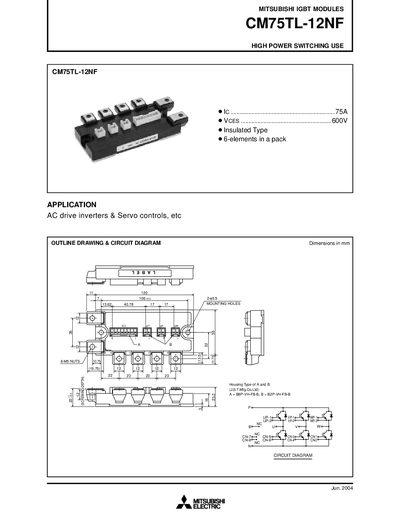

The datasheet also presents outline drawings, circuit diagrams, and transient thermal information, helping designers evaluate the module's suitability for their power electronics designs.
| Collector‑emitter voltage (VCES) | 600 V |
|---|---|
| Gate‑emitter voltage (VGES) | +20 V |
| Continuous collector current (Ic) | 75 A |
| Pulse collector current (Ic, pulse) | 150 A |
| Maximum power dissipation (Pc) | 430 W |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Storage temperature range (Tstg) | -40 °C to +125 °C |
| Isolation voltage (Viso) | 2500 V |
| Typical weight | 350 g |
| Input capacitance (Cies) | 11.3 nF |
| Output capacitance (Coes) | 14 nF |
| Reverse transfer capacitance (Cres) | 0.45 nF |
| Total gate charge (Qg) | 300 nC |
| Turn‑on delay time (td(on)) | 120 ns |
| Turn‑off delay time (td(off)) | 300 ns |
| Thermal resistance (Rth‑c) | 0.29 °C/W |
The module is rated for a collector‑emitter voltage of 600 V.
The continuous collector current is 75 A, and the pulse collector current can reach 150 A.
The typical weight is 350 g.
