This datasheet provides detailed information about the CM400DY-12NF module, including name, model, pins, dimensions, voltage, power, etc.

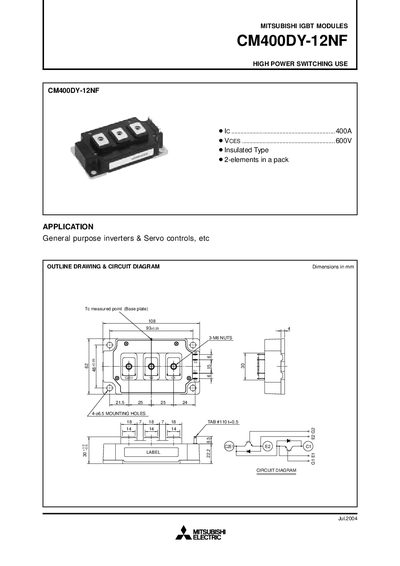

The CM400DY-12NF is a high‑power IGBT module designed for general‑purpose inverters, servo controls and similar applications. It features an insulated type construction with two elements in a single pack and includes detailed outline drawings and circuit diagrams.
The document provides maximum ratings, electrical characteristics, performance curves, reverse‑recovery data and thermal impedance information, allowing engineers to assess suitability for high‑current, high‑voltage switching tasks.
| Collector current (Ic) continuous | 400 A |
|---|---|
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Storage temperature range (Tsig) | -40 °C to +125 °C |
| Typical weight | 400 g |
| Input capacitance (Cies) | 60 nF |
| Turn‑on delay time (ton) | 300 ns |
| Thermal resistance (Rth(j‑c)) | 0.11 °C/W |
It can handle up to 400 A continuous collector current.
The typical weight of the module is 400 g.
