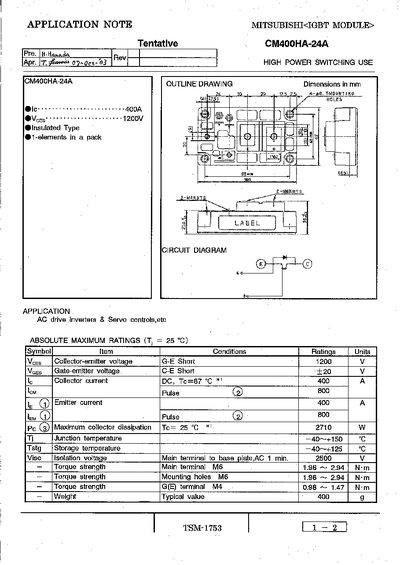

This application note provides the outline drawing, absolute maximum ratings, and detailed electrical characteristics for the Mitsubishi CM400HA-24A high‑power IGBT module. It is intended for use in AC drive inverters, servo controls and other high‑power switching applications.
Key data include a collector‑emitter voltage rating of 1200 V, a typical weight of 400 g, and thermal limits up to 150 °C junction temperature. Electrical parameters such as collector current, gate charge and switching times are listed for design reference.
| Collector‑emitter voltage (Vces) | 1200 V |
|---|---|
| Gate‑emitter voltage (Vges) | +20 V |
| Collector current (Ic) | 400 A |
| Pulse collector current (Icp) | 800 A |
| Maximum collector dissipation | 2710 W |
| Isolation voltage (main terminal to base plate) | 2500 V (1 min) |
| Typical weight | 400 g |
| Junction temperature range | -40 °C to +150 °C |
The module is rated for a collector‑emitter voltage of 1200 V.
The typical weight is about 400 g.
The junction temperature should not exceed 150 °C.
The isolation voltage is specified as 2500 V for 1 minute.
