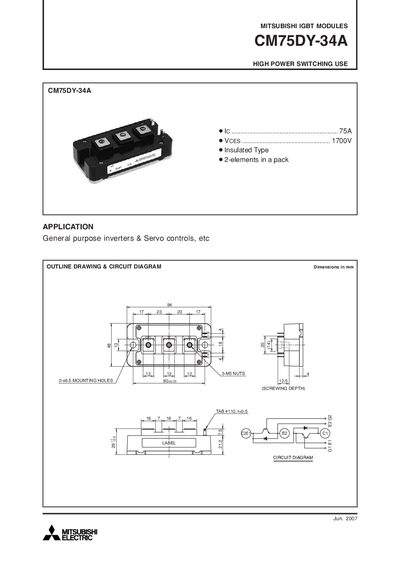

This document introduces the application of MITSUBISHI IGBT MODULES CM75DY-34A for high power switching, including general purpose inverters and servo controls. The module features high power switching with a rated current of 75A and a rated voltage of 1700V. It is an insulated type IGBT module.
The CM75DY-34A is a high‑power insulated IGBT module designed for general‑purpose inverters, servo controls and other switching applications. It features a two‑element pack, a 1700 V collector‑emitter voltage rating, and a typical weight of 310 g.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, switching and thermal performance curves, as well as mechanical outline drawings. It also includes gate‑charge characteristics and recommended operating conditions for reliable use.
| Junction temperature range (Tj) | -40 °C to +150 °C |
|---|---|
| Typical weight | 310 g |
The typical weight of the module is 310 g.
