The CM300DY-34A is a Mitsubishi IGBT module with a rated current of 300A and a rated voltage of 1700V. The module is insulated, which provides high withstand voltage and low parasitic capacitance, making it suitable for high-power switching applications.

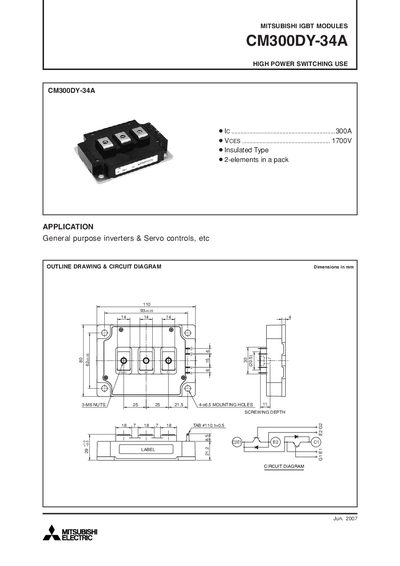

This datasheet details the specifications of the Mitsubishi CM300DY-34A insulated IGBT module, designed for high‑power switching in general‑purpose inverters and servo controls. It includes absolute maximum ratings, electrical characteristics, and typical performance curves.
Key sections cover the module's voltage and current limits, thermal resistance, switching and reverse‑recovery characteristics, as well as gate‑charge behavior, providing engineers with the data needed for design and reliability analysis.
| Collector‑Emitter Voltage (VCES) | 1700 V |
|---|---|
| Gate‑Emitter Voltage (VGES) | +20 V |
| Maximum Collector Current (Pulse) | 600 A |
| Maximum Collector Dissipation | 2900 W |
| Typical Weight | 580 g |
| Isolation Voltage (VISO) | 3500 V |
| Junction Temperature Range | -40 °C to +150 °C |
The module is rated for a collector‑emitter voltage of 1700 V.
It can handle a pulse collector current of up to 600 A.
The typical weight of the module is 580 g.
The isolation voltage is specified as 3500 V.
