The CM150TL-12NF is a power module produced by Mitsubishi Electric. It has a rated current of 150A and a rated voltage of 600V. It uses an insulated package.
The Mitsubishi CM150TL-12NF is a high‑power insulated IGBT module designed for AC drive inverters, servo controls and similar applications. It features a 6‑element pack with a compact housing and standard mounting options.

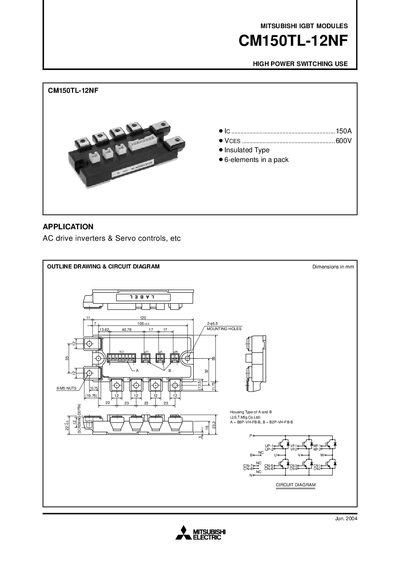

The datasheet provides absolute maximum ratings, electrical characteristics, performance curves, and thermal data, enabling engineers to evaluate suitability for high‑current, high‑voltage switching tasks.
| Collector current (Ic) DC | 150 A |
|---|---|
| Pulse collector current | 300 A |
| Typical weight | 350 g |
| Turn‑on delay time (t(on)) | 120 ns |
It can carry a continuous collector current of 150 A at 93 °C case temperature.
The typical weight is about 350 g.
