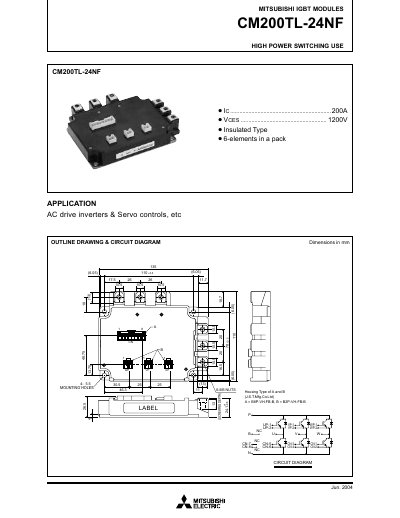

This document provides information on the application, dimensions, and circuit diagram of the MITSUBISHI IGBT module CM200TL-24NF in June 2004. This module is suitable for high power switching applications, with a current rating of 200A and a voltage rating of 1200V.
The CM200TL-24NF is a high‑power IGBT module intended for AC drive inverters, servo controls and similar applications. The datasheet includes the outline drawing, circuit diagram, and mechanical dimensions of the six‑element pack.
Key electrical specifications such as collector current, voltage ratings, gate parameters and thermal characteristics are presented together with typical performance curves for output, switching loss and reverse recovery. The document also lists absolute maximum ratings and thermal impedance data for both the IGBT and its free‑wheel diode. This manual is written in Chinese.
| Collector current (IC) | 200 A |
|---|---|
| Collector‑emitter voltage (VCES) | 1200 V |
| Number of elements | 6 |
| Gate‑emitter voltage (VGE) | 15 V |
| Thermal resistance (IGBT part) | 0.11 °C/W |
| Thermal resistance (FWDi part) | 0.17 °C/W |
The module is rated for a collector current of 200 A.
The maximum collector‑emitter voltage is 1200 V.
A gate‑emitter voltage of 15 V is specified.
