CM150RL-12NF is a IGBT module produced by Mitsubishi Electric. This module uses TO-247-3 package, rated voltage is 600V and rated current is 150A. It is suitable for AC drive inverters and servo controls.
The CM150RL-12NF is a high‑power insulated IGBT module designed for use in AC drive inverters, servo controls and similar applications. It features a 7‑element pack with BSP‑VH‑FB‑B and B2P‑VH‑FB‑B housing types.

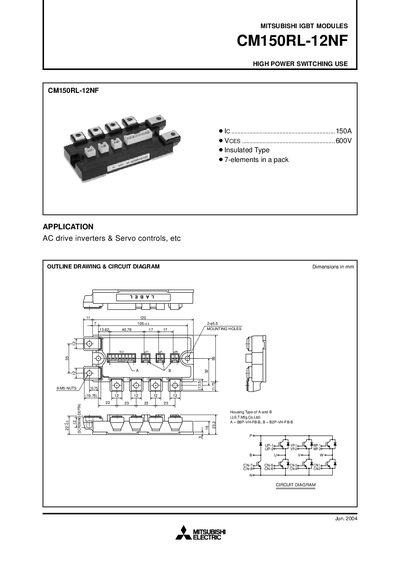

The document lists absolute maximum ratings, electrical characteristics for both inverter and brake parts, and extensive performance curves including collector‑emitter saturation voltage, gate charge, and thermal impedance. Key specifications such as 600 V collector‑emitter voltage, 150 A continuous collector current, and a typical weight of 350 g are included.
| Continuous collector current (Ic) | 150 A |
|---|---|
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Typical weight | 350 g |
The inverter part can handle a continuous collector current of 150 A.
The typical weight is 350 g.
