The CM100RL-24NF is an IGBT module produced by Mitsubishi Electric. Its rated collector-emitter voltage is 1200V and its rated collector current is 100A. The module is insulated and is suitable for use in AC drive inverters and servo controls.
The CM100RL-24NF is a high‑power insulated IGBT module from Mitsubishi Electric, designed for use in AC drive inverters, servo controls and similar applications. It features a 7‑element pack in a compact housing with mounting options A (BSP‑VH‑FB‑B) and B (B2P‑VH‑FB‑B).

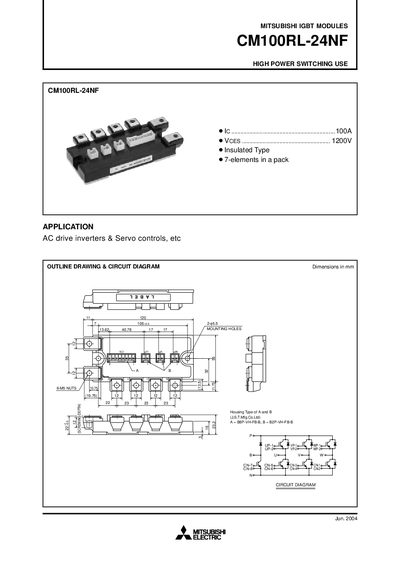

The datasheet lists absolute maximum ratings, detailed electrical characteristics for both inverter and brake parts, and a series of performance curves covering collector‑emitter voltage, gate‑emitter voltage, capacitances, thermal behavior and switching losses. Typical values such as a 1200 V collector‑emitter rating, 100 A continuous current, and 350 g weight are provided.
| Collector current (Ic) | 100 A |
|---|---|
| Junction temperature (Tj) | -40 ~ +150 °C |
| Input capacitance (Cies) | 17.5 nF |
The junction temperature can operate from –40 °C up to +150 °C.
