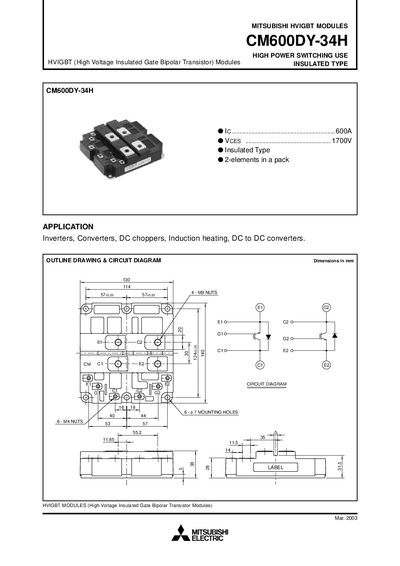

This document is the datasheet of Mitsubishi CM600DY-34H HVIGBT module, including product overview, application scenarios, external dimensions, maximum ratings, package, pin definition and other information
The CM600DY-34H is a high‑voltage insulated‑gate bipolar transistor (HVIGBT) module in an insulated type package, intended for high‑power switching uses such as inverters, converters, DC choppers, and induction heating. The module is supplied as a two‑element pack with a typical mass of 1.5 kg.
The datasheet lists maximum ratings (1700 V collector‑emitter voltage, 600 A continuous collector current, 1200 A pulse current), electrical characteristics, thermal resistance values, and detailed performance curves for switching energy, gate charge, and capacitances. Mechanical dimensions and mounting torque specifications are also provided.
| Continuous collector current (Ic) | 600 A |
|---|---|
| Pulse collector current (ICM) | 1200 A |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Typical mass | 1.5 kg |
| Main terminal mounting torque (M8) | 6.67–13.00 N·m |
The typical mass of the CM600DY-34H module is 1.5 kg.
