CM900DU-24NF is a power switching IGBT module manufactured by Mitsubishi Electric. Its rated current is 900A and rated voltage is 1200V. It is an insulated type and is packaged as 2-elements in a pack.

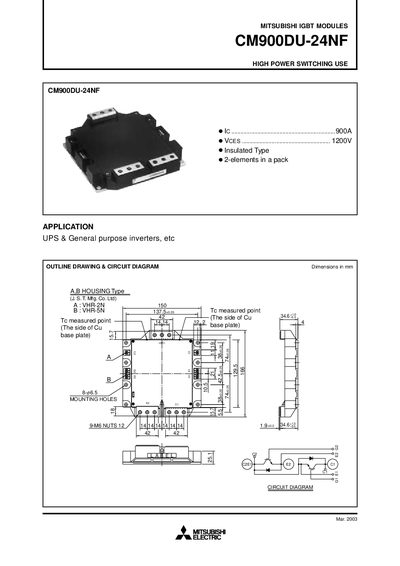

The CM900DU-24NF is a high‑power IGBT module designed for use in UPS, general‑purpose inverters and other high‑voltage switching applications. It features an insulated A‑B housing type and includes an outline drawing and circuit diagram for integration.
The datasheet lists maximum voltage and current ratings, typical weight, thermal impedance, and detailed switching and reverse‑recovery characteristics, enabling engineers to evaluate suitability for demanding power electronics designs.
| Collector‑emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑emitter voltage (VGES) | +20 V |
| Typical weight | 1400 g |
The module is rated for a collector‑emitter voltage of 1200 V.
The typical weight is about 1400 g.
The isolation voltage is specified as 2500 V for 1 minute.
