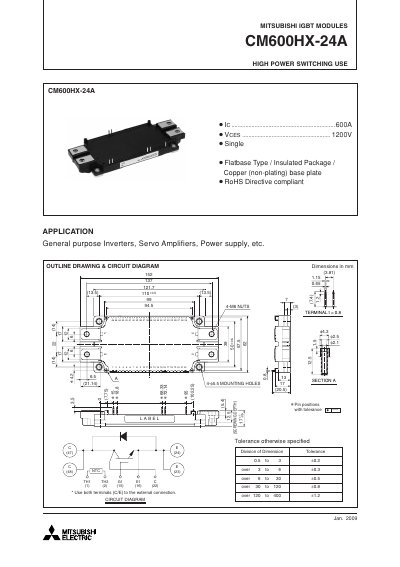

This document describes the high power switching application of the 2009 MITSUBISHI IGBT module CM600HX-24A. The module is suitable for general purpose inverters, servo amplifiers, power supplies, etc.
The Mitsubishi CM600HX-24A is a high‑power switching IGBT module designed for general‑purpose inverters, servo amplifiers, and power supplies. The datasheet provides detailed electrical ratings, thermal characteristics, mechanical dimensions, and performance curves.
Key information includes absolute maximum ratings, typical electrical characteristics, thermal resistance values, and switching time parameters, allowing engineers to evaluate suitability for their applications.
| Collector‑emitter voltage (VCE) | 1200 V |
|---|---|
| Junction temperature range | -40 °C to +150 °C |
| Isolation voltage (terminals to base plate) | 2500 Vrms |
| Thermal resistance (junction‑to‑case) | 0.048 K/W |
| Total gate charge (Qg) | 3000 nC |
The isolation voltage is specified as 2500 Vrms for a 1‑minute test at 60 Hz.
The junction temperature can operate from –40 °C up to +150 °C.
