The CM150DX-24A is an IGBT module produced by Mitsubishi Electric. It has a rated current of 150A and a rated voltage of 1200V. It is suitable for general purpose inverters, servo amplifiers, and power supplies.

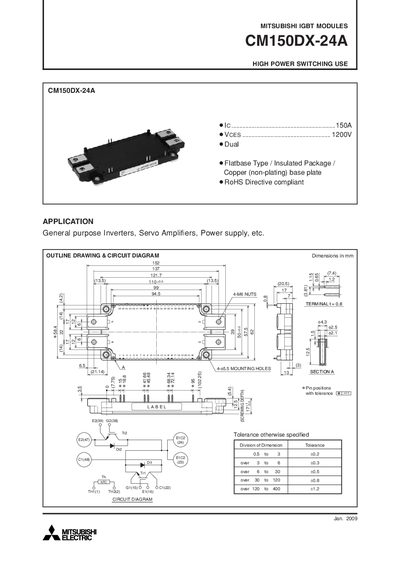

The CM150DX-24A is a high‑power IGBT module designed for inverter, servo amplifier and power‑supply applications. It features a flat‑base, insulated package with a copper (non‑plated) base plate and complies with the RoHS Directive.
The document provides absolute maximum ratings, detailed electrical characteristics, thermal parameters, mechanical dimensions, and typical performance curves for both the IGBT and its integrated free‑wheeling diode.
| Collector‑emitter voltage (VCE) | 1200 V |
|---|---|
| Gate‑emitter voltage (VGE) | +20 V |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Typical weight | 330 g |
The typical weight is 330 g.
