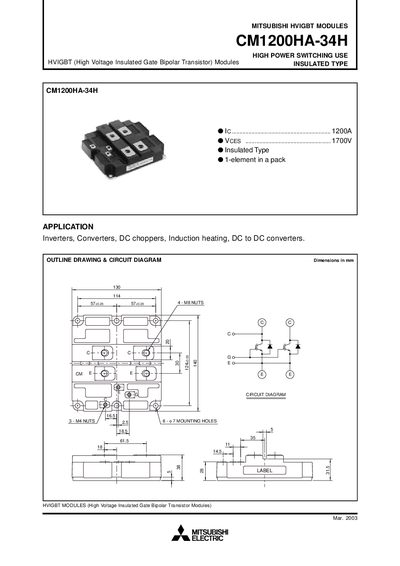

This document describes the features and applications of the 2003 Mitsubishi HVIGBT module CM1200HA-34H. The module is suitable for high power switching applications such as inverters, converters, DC choppers, induction heating, and DC to DC converters.
The CM1200HA-34H is a high‑power insulated‑gate bipolar transistor (HVIGBT) module designed for use in inverters, converters, DC choppers, induction heating and DC‑to‑DC converters. It features an insulated type construction with a single element per pack.
The document provides maximum ratings, electrical characteristics, performance curves, and thermal data, along with mechanical dimensions and recommended mounting torque values.
| Collector current (continuous) | 1200 A |
|---|---|
| Collector current (pulse) | 2400 A |
| Junction temperature range | -40 °C to +150 °C |
| Mass | 1.5 kg |
| Input capacitance | 140 nF |
The module is rated for a continuous collector current of 1200 A.
