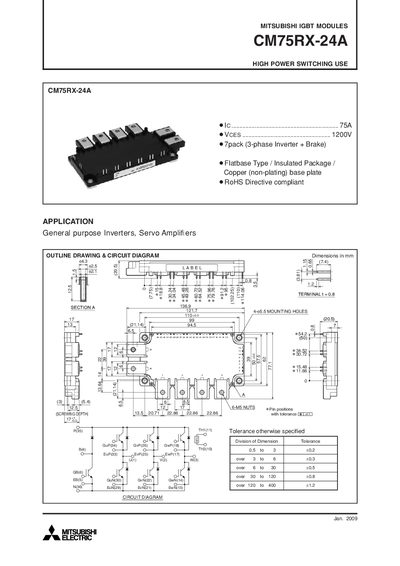

This document introduces the features and specifications of the 2009 MITSUBISHI IGBT module CM75RX-24A for high power switching. The module has a rated current of 75A and a rated voltage of 1200V. It features a flatbase type, insulated package, and non-plating copper base plate. It is compliant with the RoHS directive. Suitable for general purpose inverters and servo amplifiers.
The Mitsubishi CM75RX-24A IGBT module is designed for high‑power switching applications such as three‑phase inverters and servo amplifiers. The document provides absolute maximum ratings, electrical characteristics, thermal data, and performance curves for both the inverter and brake parts of the module.
Key information includes voltage and current limits, thermal resistance values, isolation voltage, and typical mechanical dimensions. The data sheet also contains detailed switching characteristic graphs for half‑bridge operation.
| Collector‑emitter voltage (VCE) | 1200 V |
|---|---|
| Gate‑emitter voltage (VGE) | +20 V |
| Maximum collector dissipation (Inverter part) | 500 W |
| Junction temperature range | -40 °C to +150 °C |
| Typical weight | 330 g |
The module’s junction temperature can operate from –40 °C up to +150 °C.
The typical weight is 330 g.
